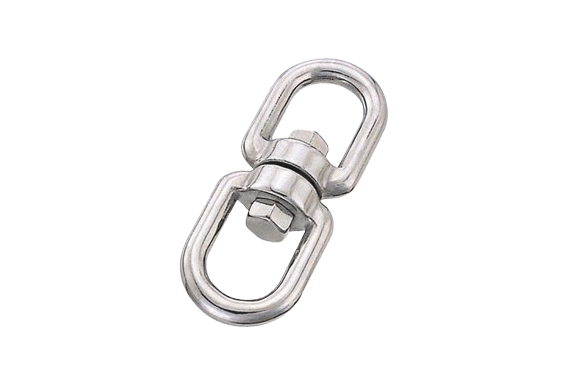

Mizumoto MS Series Swivel
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MS Series
Features
- It rotates to remove twisting. The center part rotates and is used as a fixer.
Specifications
| Product Number | D | L1 | W1 | L2 | W2 | A | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| MS-3 | 3 | 27.5 | 14 | 5.5 | 8 | 3 | 5 | 30 | 0.29 |
| MS-4 | 4 | 50 | 19 | 12 | 11 | 4 | 17 | 80 | 0.78 |
| MS-5 | 5 | 59 | 23 | 14 | 13 | 5 | 35 | 120 | 1.18 |
| MS-6 | 6 | 66 | 27 | 15 | 15 | 6.2 | 54 | 180 | 1.76 |
| MS-8 | 8 | 90 | 35 | 21 | 20 | 8 | 124 | 250 | 2.45 |
| MS-9 | 9 | 104 | 40 | 23 | 22 | 10 | 195 | 300 | 2.94 |
| MS-10 | 10 | 115 | 44 | 27 | 24 | 10 | 252 | 400 | 3.92 |
| MS-12 | 12 | 129 | 49 | 28 | 25 | 12 | 372 | 700 | 6.86 |
| MS-13 | 13 | 150 | 58 | 33 | 33 | 14 | 546 | 900 | 8.82 |
| MS-16 | 16 | 187 | 70 | 45 | 39 | 16 | 1080 | 1200 | 11.76 |
| MS-19 | 20 | 229 | 82 | 53 | 42 | 19 | 1800 | 1800 | 17.64 |
| NEW MS-22 | 23 | 248 | 93 | 53 | 47 | 22 | 2750 | 2300 | 22.54 |
| NEW MS-25 | 26 | 291 | 115 | 67 | 63 | 25 | 4275 | 2800 | 27.44 |
| NEW MS-28 | 30 | 340 | 130 | 78 | 70 | 28 | 6390 | 3500 | 34.30 |

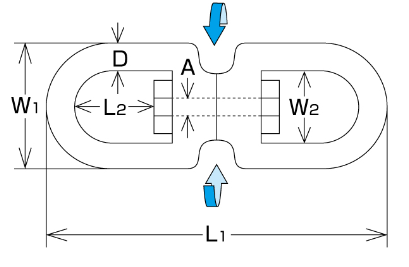

Dimensions (mm)
