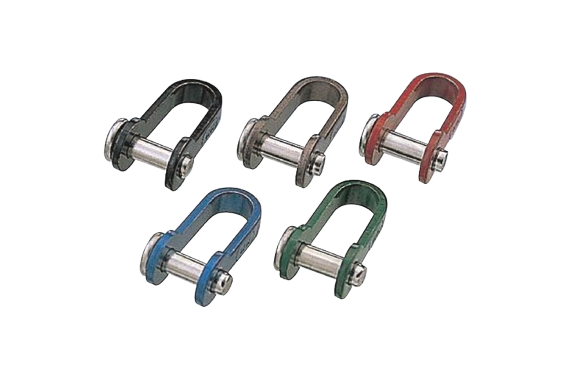

Mizumoto PS Series Riveted Shackle (Color)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PS Series
Features
- If you hit the pin with a hammer, the pin will not come off.
- It is used for connecting chains, wires, ropes, etc., and for joints of terminal fittings.
- In particular, there is a high level of vibration where the pin may loosen with a normal shackle.
Specifications
| Product Number | D | L | B | d | t | F | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| PS-3 (R/B/GR/BN/BK) | 3 | 17 | 5 | 7 | 1.5 | 3 | 3 | 20 | 0.20 |
| PS-4 (R/B/GR/BN/BK) | 4 | 19 | 7 | 9 | 1.5 | 4 | 4 | 30 | 0.29 |
| PS-5 (R/B/GR/BN/BK) | 5 | 22 | 9 | 12 | 2 | 6 | 10 | 50 | 0.49 |

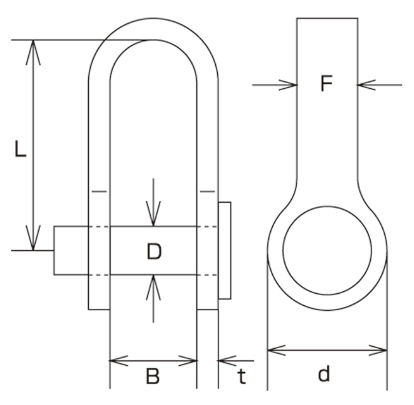

Dimensions (mm)
