Mizumoto Machine Mfg. Co.

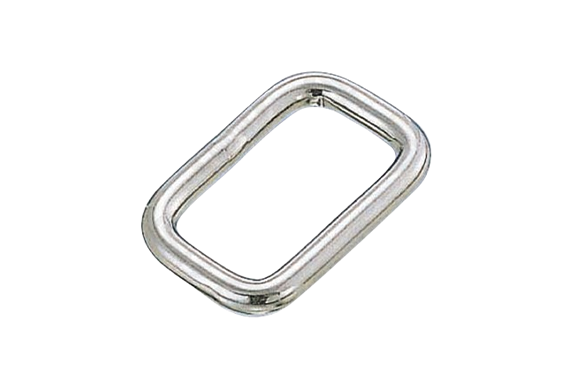

Mizumoto RQ Series Square Link
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RQ Series
Features
- The connection is welded and is strong. You can use belts with a width such as rubber or fiber.
- As a metal fitting, such as a bag or clothing.
Specifications
| Part No. | D (mm) | A (mm) | B (mm) | Weight (g) | Reference Working Load | Price (JPY / pc) | Packing Unit | ||
| (kgf) | (kN) | Incl. Tax | Excl. Tax | ||||||
| RQ-3-15 | 3 | 15 | 9 | 2 | 20 | 0.20 | 330 | 300 | 20 |
| RQ-4-15 | 4 | 15 | 9 | 5 | 40 | 0.39 | 363 | 330 | 20 |
| RQ-4-20 | 4 | 20 | 12 | 7 | 40 | 0.39 | 385 | 350 | 20 |
| RQ-5-20 | 5 | 20 | 12 | 11 | 60 | 0.59 | 440 | 400 | 20 |
| RQ-5-25 | 5 | 26 | 15 | 14 | 60 | 0.59 | 495 | 450 | 20 |
| RQ-5-30 | 5 | 32 | 18 | 17 | 60 | 0.59 | 539 | 490 | 20 |
| RQ-5-40 | 5 | 39 | 21 | 20 | 60 | 0.59 | 572 | 520 | 20 |
| RQ-6-40 | 6 | 39 | 21 | 29 | 80 | 0.78 | 803 | 730 | 20 |
| RQ-6-50 | 6 | 47 | 25 | 35 | 80 | 0.78 | 913 | 830 | 20 |

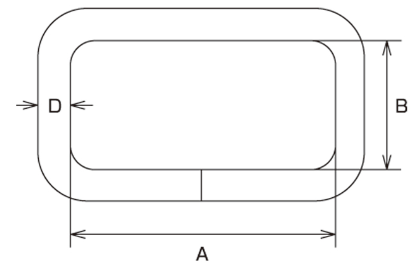

Dimensions (mm)
