Mizumoto Machine Mfg. Co.

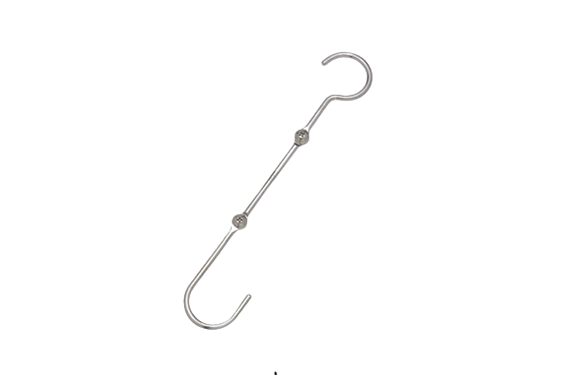

Mizumoto SAW Series Consolidated S Can (Q&J)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SAW Series
Features
- This is an assembled S-can using S-hooks (SAQ, SAJ, SAI).
- The packaging form can be smaller, and the storage is compact.
- Used to lower nets and hook objects.
Specifications
| Product Number | D | L1 | L2 | L3 | W | S | H | R | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SAW-6-300QJ | 6 | 300 | 100 | 100 | 40 | 30 | 51 | 20 | M-6 | 108 | 20 | 0.20 |
| SAW-6-450QJ | 6 | 450 | 250 | 100 | 40 | 30 | 51 | 20 | M-6 | 141 | 20 | 0.20 |
| SAW-6-700QJ | 6 | 700 | 500 | 100 | 40 | 30 | 51 | 20 | M-6 | 198 | 20 | 0.20 |
| SAW-6-950QJ | 6 | 950 | 750 | 100 | 40 | 30 | 51 | 20 | M-6 | 252 | 20 | 0.20 |
| SAW-6-1200QJ | 6 | 1200 | 1000 | 100 | 40 | 30 | 51 | 20 | M-6 | 310 | 20 | 0.20 |
*With 2 machine screws
*Please tighten the machine screws included during assembly firmly to the end.
*The screw may come loose. If it becomes loose, tighten it again and use it.

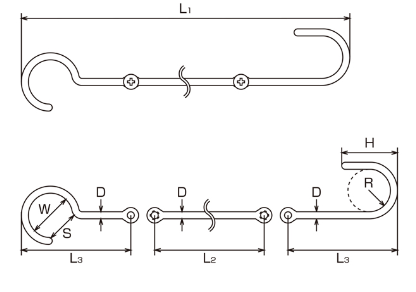

Dimensions (mm)
