Mizumoto Machine Mfg. Co.

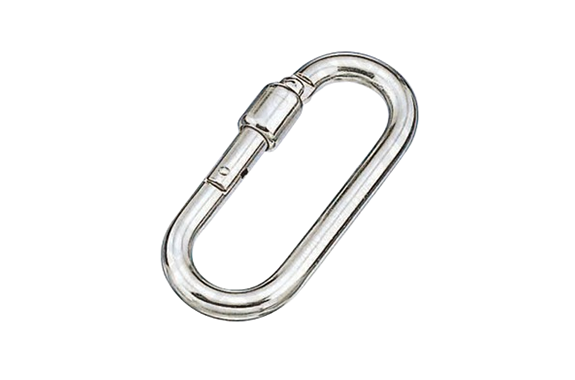

Mizumoto PN Series Open Hook Type P
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PN Series
Features
- It has an outward opening structure with a ring, so it cannot be opened carelessly.
- It can be unlocked by simply pulling the ring, and it is easy to open and close.
- It is used for connecting chains, wires, ropes, etc., and for joints of terminal fittings.
Specifications
| Part No. | D | L | W1 | W2 | S | Weight (g) | Reference Working Load (kgf) | (kN) |
| PN-4 | 4 | 37 | 11 | 13 | 9 | 11 | 30 | 0.29 |
| PN-5 | 5 | 58 | 14.5 | 16 | 15 | 26 | 70 | 0.69 |
| PN-6 | 6 | 66 | 15.5 | 18 | 15 | 41 | 100 | 0.98 |
| PN-8 | 8 | 74 | 20 | 22 | 24 | 80 | 150 | 1.47 |
| PN-10 | 10 | 91 | 26 | 28 | 27 | 152 | 200 | 1.96 |
| PN-12 | 12 | 111 | 36 | 38 | 33 | 276 | 300 | 2.94 |

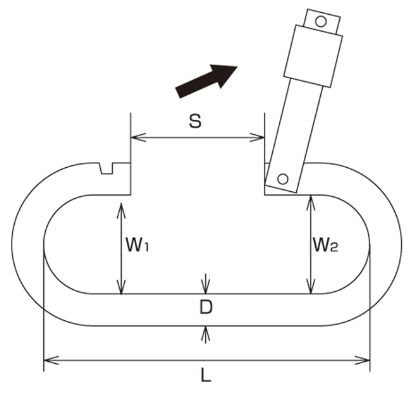

Dimensions (mm)
