Mizumoto Machine Mfg. Co.

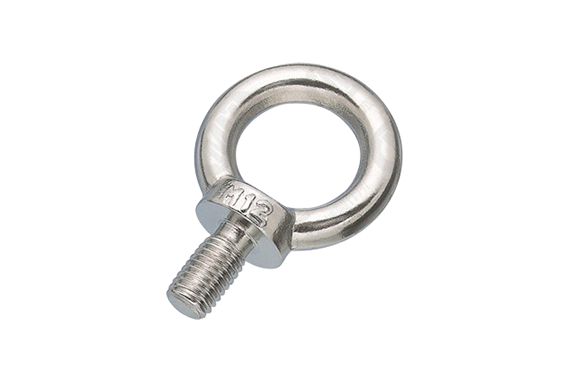

Mizumoto IBF Series Eye Bolt (Forged)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: IBF Series
Features
- Since the head of the bolt is ring-shaped, it can be used through ropes, chains, wires, etc.
- For general cargo handling such as lifting machinery and equipment.
Specifications
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| IBF-6M | 5 | 14.5 | 26.5 | 14 | 13 | M-6 | 18 | 50 | 0.49 |
| IBF-8M | 6.3 | 20 | 33.3 | 15 | 16 | M-8 | 33 | 80 | 0.78 |
| IBF-10M | 8 | 25 | 41.5 | 18 | 20 | M-10 | 70 | 150 | 1.47 |
| IBF-12M | 10 | 30 | 51 | 22 | 25 | M-12 | 125 | 220 | 2.16 |
| NEW IBF-14M | 12.5 | 35 | 60 | 27 | 30 | M-14 | 220 | 330 | 3.23 |
| IBF-16M | 12.5 | 35 | 60 | 27 | 30 | M-16 | 220 | 450 | 4.41 |
| NEW IBF-18M | 16 | 40 | 71 | 30 | 35 | M-18 | 370 | 540 | 5.29 |
| IBF-20M | 16 | 40 | 71 | 30 | 35 | M-20 | 380 | 630 | 6.18 |
| NEW IBF-22M | 18 | 45 | 81 | 35 | 40 | M-22 | 575 | 800 | 7.84 |
| IBF-24M | 20 | 50 | 90 | 38 | 45 | M-24 | 760 | 950 | 9.31 |

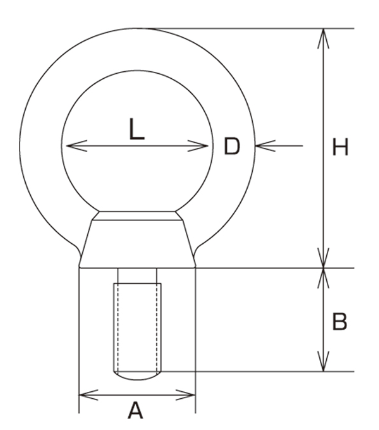

Dimensions (mm)
