Mizumoto Machine Mfg. Co.

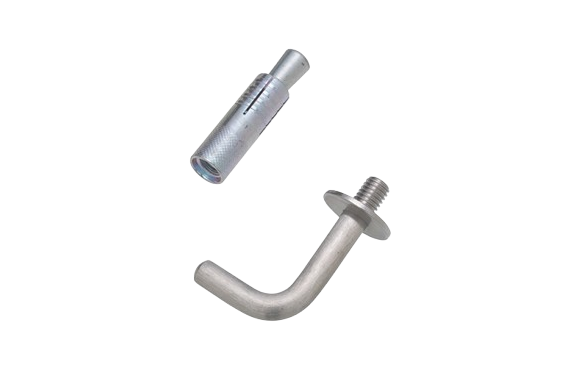

Mizumoto HL Series Petit Hook L Type
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: HL Series
Features
- It is made of stainless steel, so it is ideal for plumbing.
- For hangers for outdoor water equipment (foot washing area, etc.).
Specifications
| Product Number | D | L | H | W | B | T | Thread Size | Drill Diameter | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| HL-6 | 6 | 20 | 30 | 25 | 10 | 2 | M-6 | 11 | 33 | 10 | 0.10 |
| HL-8 | 8 | 22 | 40 | 33 | 11 | 2 | M-8 | 12.5 | 57 | 40 | 0.39 |
| HL-10 | 10 | 22 | 50 | 40 | 13 | 2 | M-10 | 14.5 | 93 | 50 | 0.49 |

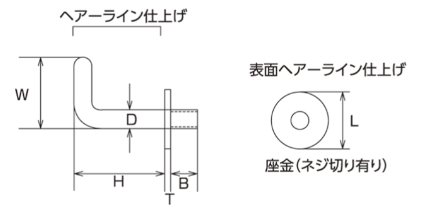

Dimensions (mm)
