Mizumoto Machine Mfg. Co.

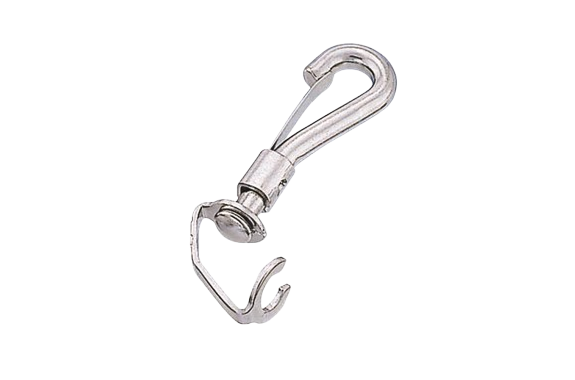

Mizumoto E Series One-Touch Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: E Series
Features
- It is a type that is struck with a hammer.
- It’s a swivel, so it won’t twist.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product No. | D | L | W | S | t1 | t2 | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| E-4 | 4 | 54 | 16 | 5 | 1.4 | 4.5 | 13 | 5 | 0.05 |
| E-5 | 5 | 65 | 21 | 7 | 1.5 | 5.5 | 24 | 10 | 0.10 |
| E-6 | 6 | 80 | 24 | 8 | 1.5 | 5.5 | 37 | 15 | 0.15 |
| E-8 | 8 | 86 | 29 | 7 | 2 | 6 | 64 | 20 | 0.20 |

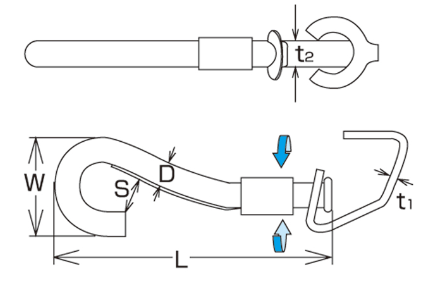

Dimensions (mm)
