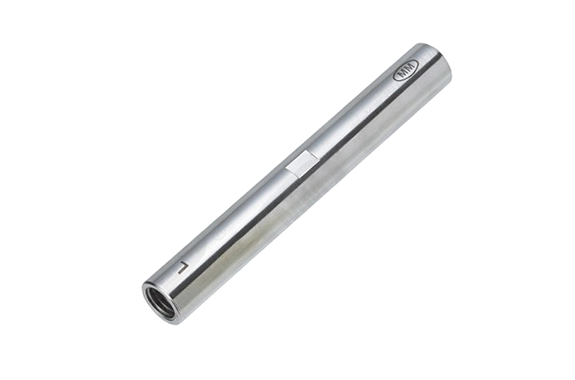

Mizumoto TBF Series Roll Turnbuckle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TBF Series
Features
- It is a pipe with a threading process at both ends consisting of a right-hand thread and a left-hand thread.
- You can rotate the pipe by inserting the bolts on the left and right sides to loosen or tighten it.
- To adjust the tension of the wire rope.
Specifications
| Model | L | A | B | Thread Size | Weight (g) |
| TBF-6M80 | 80 | 35 | 10 | M-6 | 34 |
| TBF-8M80 | 80 | 35 | 12 | M-8 | 44 |
| TBF-10M120 | 120 | 55 | 14 | M-10 | 82 |
| TBF-12M120 | 120 | 55 | 16 | M-12 | 97 |

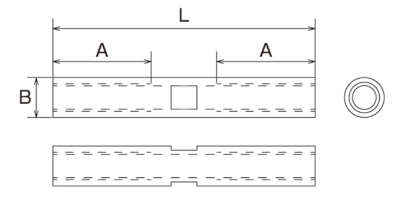

Dimensions (mm)
