Mizumoto Machine Mfg. Co.

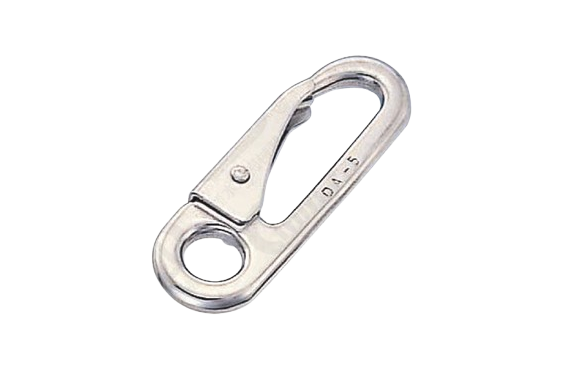

Mizumoto DA Series Snap Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: DA Series
Features
- The hook part and the part where the chain rope is put are separated.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product Number | D | L | W | S | d | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| DA-5 | 5.5 | 65 | 21 | 7 | 10 | 4.5 | 28 | 20 | 0.2 |
| DA-6 | 7 | 74 | 25 | 9 | 11 | 5 | 41 | 30 | 0.29 |
| DA-8 | 8 | 86 | 28 | 10 | 13 | 6.5 | 65 | 60 | 0.59 |

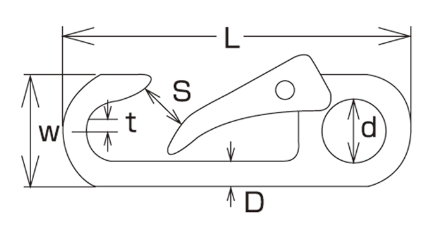

Dimensions (mm)
