Mizumoto Machine Mfg. Co.

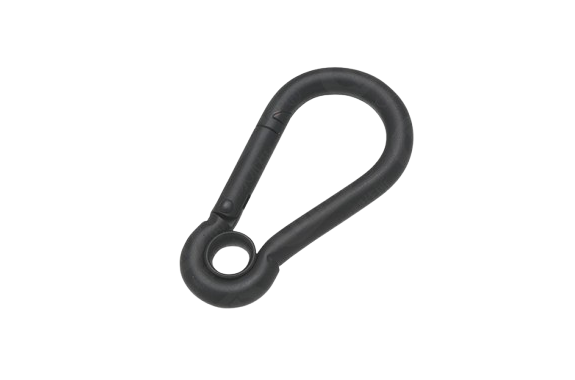

Mizumoto A Series Snap Hook Type A Black Painted
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: A Series
Features
- It is painted black, so it is not reflective and is not easily noticeable.
- It has a ring to prevent entanglement.
- For stages, lighting, decoration, and optical equipment.
- As a connecting bracket for chains, wires, ropes, etc., and as a joint for terminal fittings.
- Surface finish: Black paint (matte black)
Specifications
| Part No. | D | L | W | S | d | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | |||||||
| A-5MB | 5 | 53 | 26 | 7 | 6 | 18 | 60 | 0.59 |
| A-6MB | 6 | 61 | 31.5 | 9 | 7.5 | 29 | 80 | 0.78 |
| A-7MB | 7 | 70 | 36 | 9.5 | 8 | 46 | 100 | 0.98 |
| A-8MB | 8 | 80 | 40 | 11 | 10 | 68 | 120 | 1.18 |
*The surface finish may vary slightly depending on the lot.
*The color may fade depending on the environment. Do not use outdoors.
*The paint may peel off due to impact.

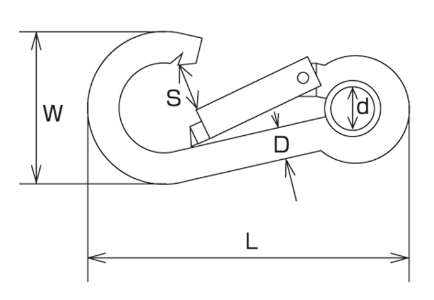

Dimensions (mm)
