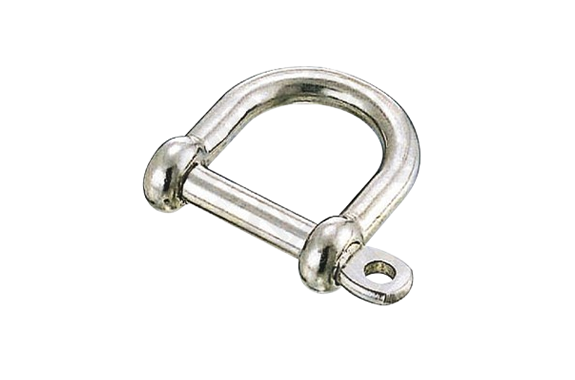

Mizumoto SPW Series Wide Thread Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SPW Series
Features
- Because it is wide, it can also be used for wide belts. It is used as a connecting fitting.
Specifications
| Product Number | D | L | B | d | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SPW-5 | 5 | 22.5 | 25 | 10 | M-5 | 18 | 90 | 0.88 |
| SPW-6 | 6 | 36 | 24 | 12 | M-6 | 33 | 170 | 1.67 |
| SPW-8 | 8 | 35 | 28 | 16 | M-8 | 65 | 250 | 2.45 |
| SPW-10 | 10 | 60 | 40 | 20 | M-10 | 156 | 350 | 3.43 |
| SPW-12 | 12 | 72 | 48 | 24 | M-12 | 260 | 420 | 4.12 |

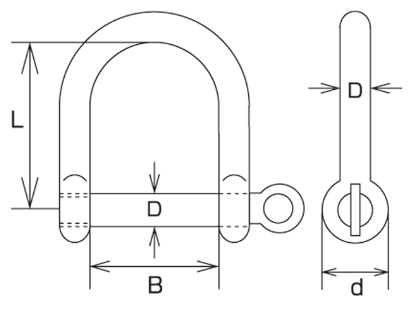

Dimensions (mm)
