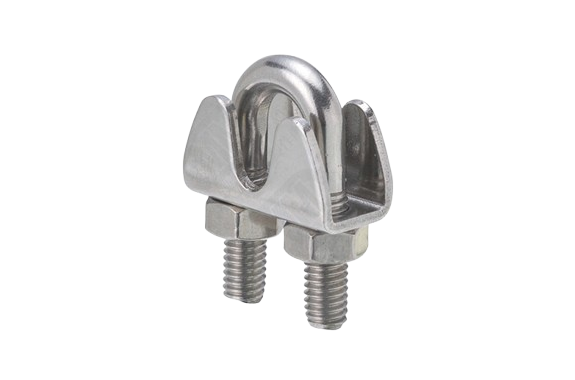

Mizumoto PWC Series Pressed Wire Clip
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PWC Series
Features
- Wire can be processed on-site. For terminal processing of wire ropes.
Specifications
| Part No. | D | A | B | H | L | T | W | t | Thread Size | Applicable Rope Diameter | Weight (g) |
| PWC-3 | 2.6 | 14 | 7.5 | 8 | 20 | 12 | 8 | 1 | M-3 | 3 | 4 |
| PWC-4 | 3.5 | 19 | 10 | 10.5 | 22 | 12 | 10 | 1.5 | M-4 | 4 | 9 |
| PWC-5 | 4.4 | 22 | 12 | 12 | 26 | 16 | 11.5 | 2 | M-5 | 5 | 15 |
| PWC-6 | 5.3 | 26 | 13 | 15 | 34 | 18 | 14 | 2 | M-6 | 6 | 26 |
| PWC-8 | 7.1 | 31 | 17 | 19 | 41 | 23 | 17 | 2.5 | M-8 | 8 | 54 |

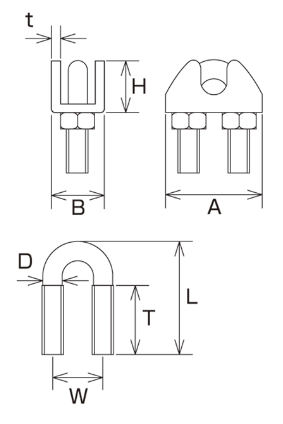

Dimensions (mm)
