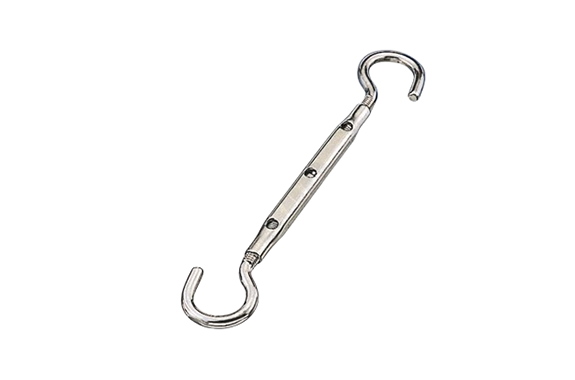

Mizumoto TBQ-P Series Corner Turnbuckle for Pools
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TBQ-P Series
Features
- The frame can be rotated to loosen or tighten. To adjust the tension of the wire rope.
Specifications
| Model | L | W | J | D | S | A | B | L1 | L2 | Thread Size | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| TBQ-9P | 149.5 | 14 | 8.2 | 8.2 | 21 | 80 | 136 | 272 | 385 | W-3/8 | 282 | 160 | 1.57 |

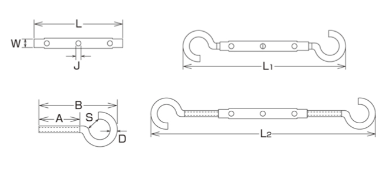

Dimensions (mm)
