Mizumoto Machine Mfg. Co.

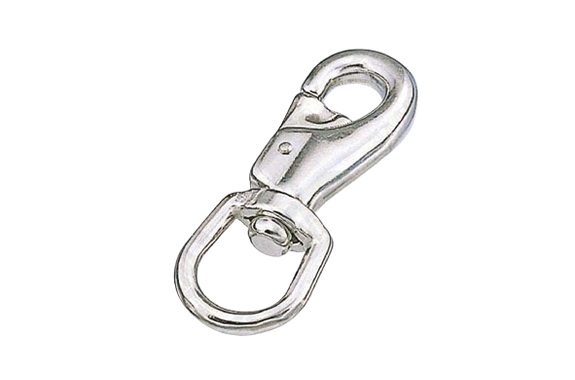

Mizumoto AX Series Swivel Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: AX Series
Features
- It is an outward opening type. As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings. For chains, etc.
Specifications
| Product No. | D | L | W | H | d | t | S | R | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AX-3 | 7 | 113 | 36 | 25 | 26 | 14.5 | 14 | 8 | 181 | 100 | 0.98 |

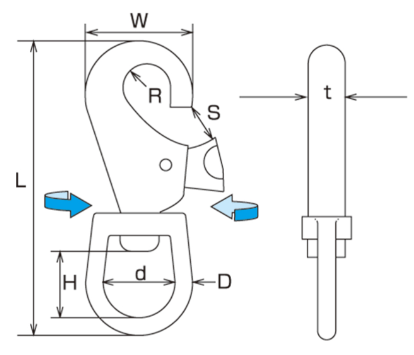

Dimensions (mm)
