Mizumoto Machine Mfg. Co.

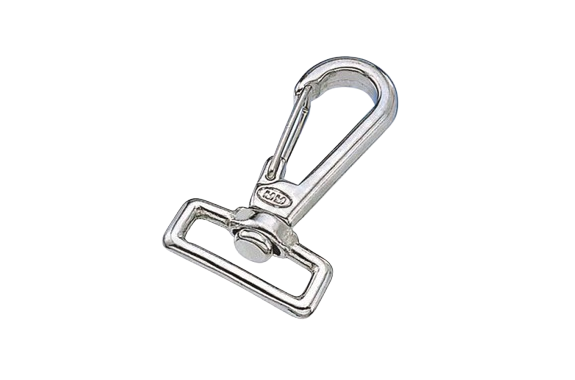

Mizumoto V Series Swivel Belt Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: V Series
Features
- There is a straight part on the eye part, which can be connected to a wide belt.
- As a connection bracelet with a belt-like flat object such as rubber or fiber, or as a joint for terminal fittings.
Specifications
| Product No. | D | L | W1 | W2 | S | R | H | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| V-1 | 4 | 63 | 25 | 21.5 | 9 | 3 | 5 | 7 | 29 | 20 | 0.20 |
| V-2 | 4 | 63 | 31 | 21.5 | 9 | 3 | 5 | 7 | 33 | 20 | 0.20 |
| V-3 | 4 | 63 | 41 | 21.5 | 9 | 3 | 5 | 7 | 36 | 20 | 0.20 |
| V-4 | 5 | 78 | 51 | 26 | 11.5 | 5.5 | 6 | 8.5 | 63 | 30 | 0.29 |

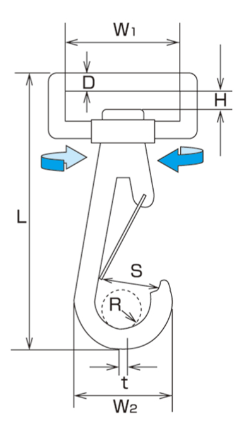

Dimensions (mm)
