Mizumoto Machine Mfg. Co.

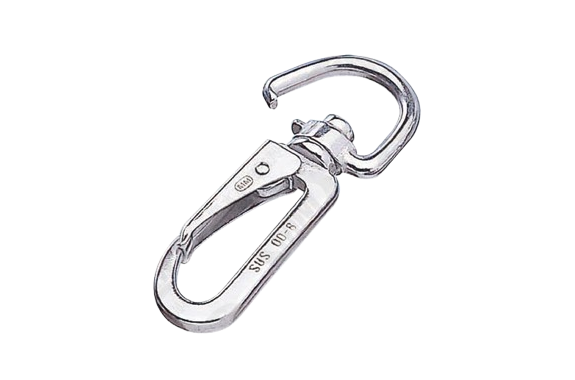

Mizumoto OD Series Nascan Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: OD Series
Features
- It can be attached and detached with one touch.
- With the swivel type, you don’t have to worry about kinking the chain.
- Since it is simply struck with a hammer, there is no need for welding or other work.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product No. | D | D1 | L | W | S | H | d | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OD-5 | 5.5 | 5 | 85 | 23 | 7 | 15 | 19 | 5 | 48 | 20 | 0.2 |
| OD-6 | 7 | 6 | 96 | 26.5 | 9 | 16 | 20 | 5 | 67 | 30 | 0.29 |
| OD-8 | 8 | 6.5 | 107 | 30 | 10 | 18 | 24 | 6.5 | 91 | 60 | 0.59 |

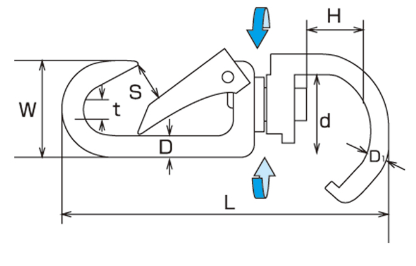

Dimensions (mm)
