Mizumoto Machine Mfg. Co.

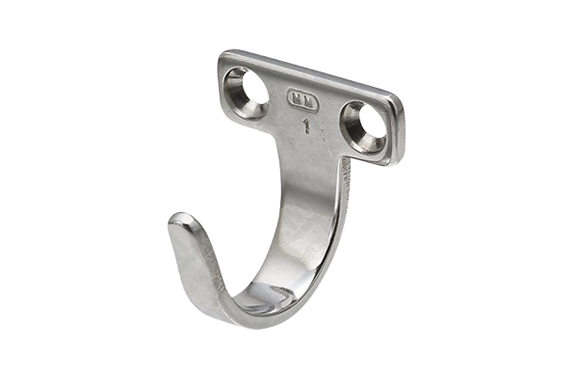

Mizumoto YFD Series Seat Hook Type D
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: YFD Series
Features
- It is made of stainless steel, rust-resistant, and durable. As a hanger.
Specifications
| Item Number | L (Length) | W (Width) | B (Breadth) | A (Height) | H (Height) | d | T | Weight (kg) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| YFD-1 | 28 | 28 | 18 | 10 | 25 | 4 | 2.5 | 11 | 5 | 0.05 |
| YFD-2 | 33 | 33 | 20 | 13 | 30 | 4 | 2.5 | 17 | 5 | 0.05 |
| YFD-3 | 38 | 38 | 23 | 15 | 35 | 4 | 2.5 | 25 | 5 | 0.05 |
| YFD-4 | 44 | 43 | 30 | 18 | 40 | 4 | 2.5 | 32 | 4 | 0.04 |
*Type B (bagged) comes with stainless steel plate wood twister

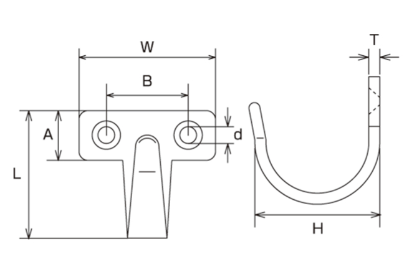

Dimensions (mm)
