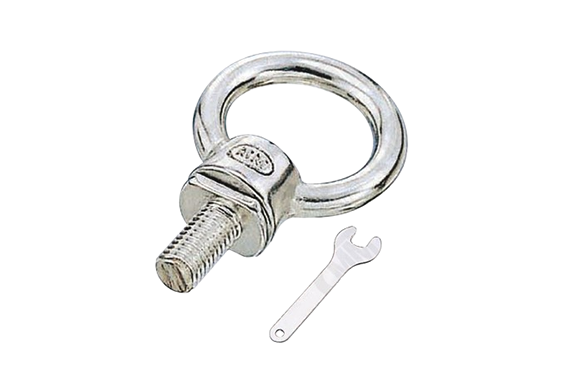

Mizumoto IBS Series Rotating Eye Bolt
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: IBS Series
Features
- The head of the bolt is ring-shaped, so it can be used through ropes, chains, wires, etc.
- The eye part rotates, so the chain cannot be twisted. For general cargo handling, such as lifting machinery and equipment.
- Since it is tightened with a special spanner, it prevents theft of car stop chains, etc.
Specifications
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| IBS-6M | 5 | 20 | 35 | 14 | 16 | M-6 | 29 | 50 | 0.49 |
| IBS-8M | 6 | 25 | 43 | 15 | 17 | M-8 | 43 | 80 | 0.78 |
| IBS-10M | 8 | 30 | 54 | 18 | 20 | M-10 | 88 | 120 | 1.18 |
| IBS-12M | 10 | 35 | 63 | 22 | 24 | M-12 | 157 | 180 | 1.76 |
| IBS-16M | 13 | 40 | 75 | 27 | 29 | M-16 | 316 | 320 | 3.14 |
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| IBS-6W | 5 | 20 | 35 | 14 | 16 | W-1/4 | 29 | 50 | 0.49 |
| IBS-8W | 6 | 25 | 43 | 15 | 17 | W-5/16 | 43 | 80 | 0.78 |
| IBS-10W | 8 | 30 | 54 | 18 | 20 | W-3/8 | 88 | 120 | 1.18 |
| IBS-12W | 10 | 35 | 63 | 22 | 24 | W-1/2 | 157 | 180 | 1.76 |
| IBS-16W | 13 | 40 | 75 | 27 | 29 | W-5/8 | 316 | 320 | 3.14 |
*Do not use it as a hanging fitting.
*It is dangerous to rotate the screw in the direction of loosening under load.

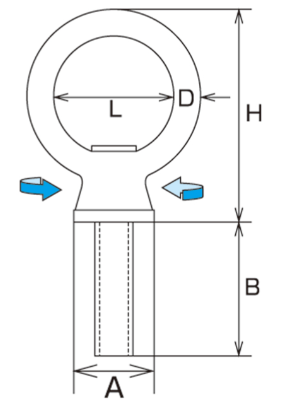

Dimensions (mm)
