Mizumoto MV Series Stainless Steel Mooring Ring
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MV Series
Features
- Because it is made of stainless steel, it is resistant to corrosion and is beautiful compared to conventional iron mooring rings, which are prone to corrosion.
- It is set up at piers and wharves, and wire ropes are tied to moor ships.
Specifications
| Model | d | D1 | D2 | L | W | A | B | Calculated Weight (kg) | Reference Working Load (tf) | Reference Working Load (kN) |
| MV-16 | 16 | 120 | 40 | 286 | 390 | 70 | 64 | 2.1 | 1 | 9.8 |
| MV-19 | 19 | 150 | 42 | 340 | 460 | 80 | 76 | 3.4 | 1.5 | 14.7 |
| MV-22 | 22 | 175 | 50 | 397 | 540 | 95 | 88 | 5.2 | 2 | 19.6 |
| MV-25 | 25 | 200 | 55 | 452.5 | 610 | 110 | 100 | 7.7 | 3 | 29.4 |
| MV-28 | 28 | 200 | 100 | 498 | 680 | 150 | 100 | 11.3 | 4 | 39.2 |
| MV-32 | 32 | 200 | 100 | 502 | 700 | 150 | 100 | 15 | 5 | 49 |

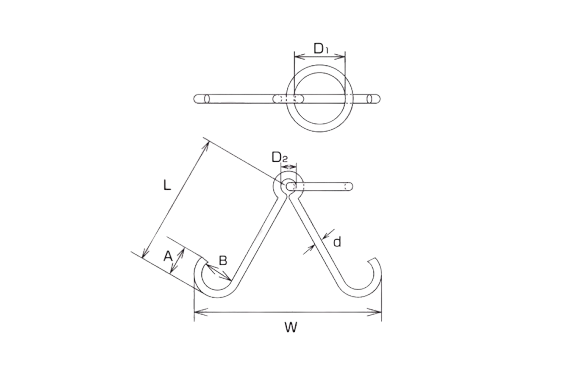

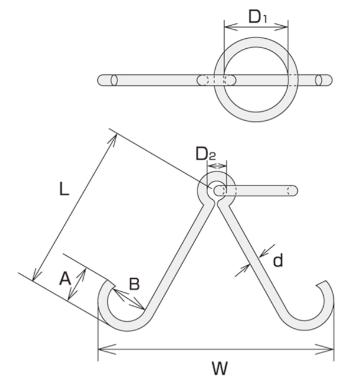

Dimensions (mm)
