Mizumoto Machine Mfg. Co.

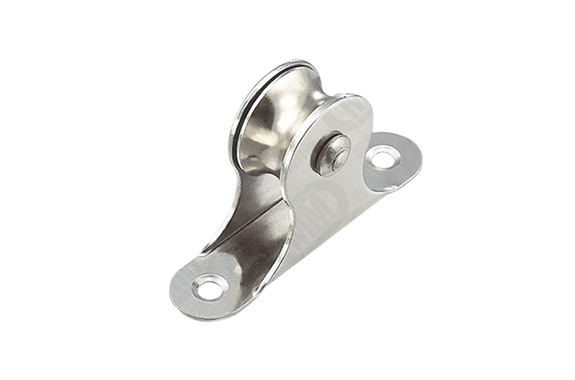

Mizumoto RG Series Rope Guide
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RG Series
Features
- It can be installed on narrow surfaces. Through rope etc. into the groove of the car, as a rope guide.
Specifications
| Model | Wheel Diameter | Groove Width | L1 | L2 | W | H | d | t | Applicable Rope Diameter | Weight (g) |
| RG-1 | 18 | 7.5 | 50 | 38 | 12 | 28.5 | 3.5 | 1 | ~φ8 | 27 |

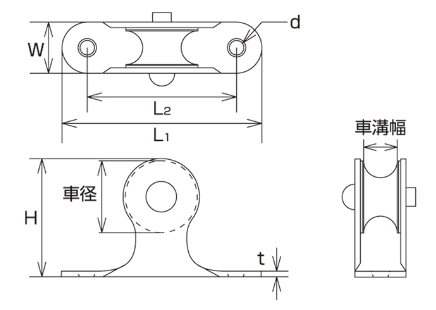

Dimensions (mm)
