Mizumoto Machine Mfg. Co.

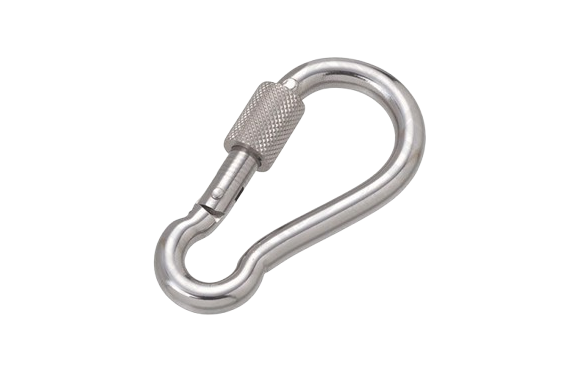

Mizumoto NB Series Snap Hook With Loop
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: NB Series
Features
- This is a standard spring hook.
- The hook does not open inadvertently, which is more secure.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Item No. | D | L | W | S | d1 | d2 | Weight (g) | Max Load (kgf) | Max Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| NB-4 | 4 | 45 | 22 | 5.5 | 4.5 | 6.5 | 11 | 40 | 0.39 |
| NB-5 | 5 | 53 | 26 | 5.5 | 5.5 | 8 | 19 | 75 | 0.74 |
| NB-6 | 6 | 61 | 31.5 | 6.5 | 6.5 | 9 | 34 | 100 | 0.98 |
| NB-8 | 8 | 80 | 40 | 8.5 | 9 | 12 | 74 | 150 | 1.47 |
| NB-10 | 10 | 102 | 50 | 11 | 11 | 16 | 146 | 200 | 1.96 |

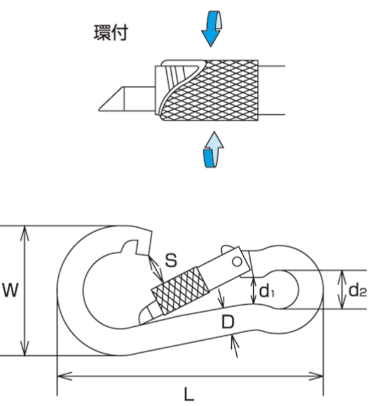

Dimensions (mm)
