Mizumoto Machine Mfg. Co.

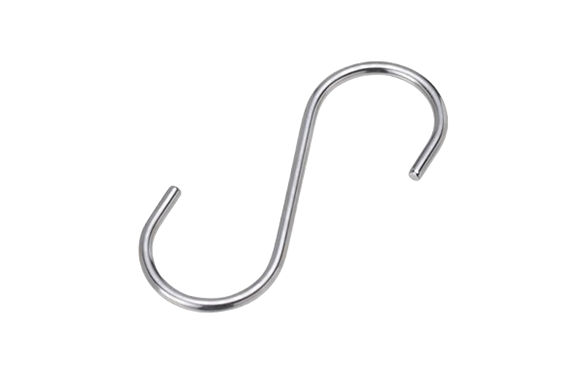

Mizumoto SAO Series S Kan
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SAO Series
Features
- As a hanging bracket for storing general products such as tools and instruments.
Specifications
| Product Number | D | L1 | L2 | W | S | Weight (g) | Reference Load (kgf) | Reference Load (kN) | Unit Price (¥/unit) | Body (mm) | Package Unit |
| SAO-5-80 | 5 | 80 | 70 | 30 | 23 | 26 | 10 | 0.10 | 715 | 650 | 20 |
| SAO-5-120 | 5 | 120 | 110 | 38 | 36 | 10 | 10 | 0.10 | 858 | 780 | 20 |
| SAO-6-160 | 6 | 160 | 148 | 44.5 | 33 | 68 | 15 | 0.15 | 1,573 | 1,430 | 20 |

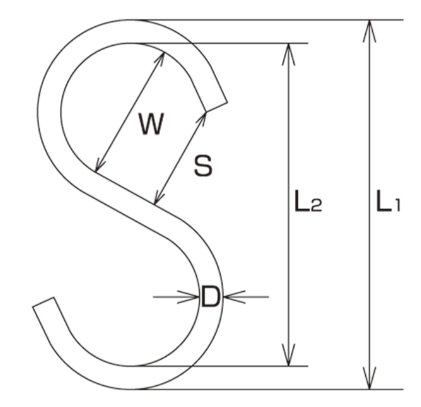

Dimensions (mm)
