Mizumoto Machine Mfg. Co.

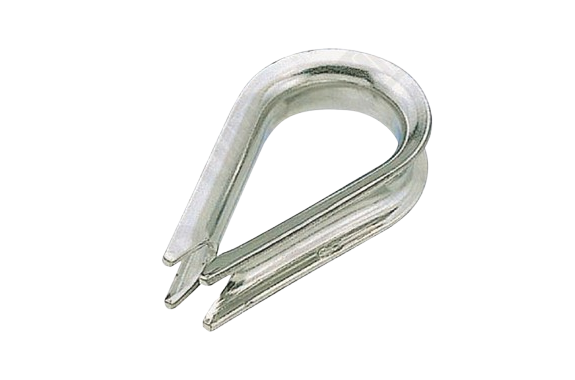

Mizumoto KRN Series Plank Thimble
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KRN Series
Features
- It is used as a wire course for terminal processing. When using the wire rope tip with eye processing, it prevents wire wear.
Specifications
| Part No. | D | L | A | B | Applicable Rope Diameter | Weight (g) |
| KRN-2.5 | 8 | 16 | 3.5 | 5 | 2.5 | 2 |
| KRN-3 | 9.5 | 18 | 4.5 | 6 | 3 | 3 |
| KRN-4 | 11.5 | 23.5 | 4.5 | 6.5 | 4 | 5 |
| KRN-6 | 16.5 | 33.5 | 8 | 10.5 | 6 | 13 |
| KRN-8–10 | 20 | 42 | 12 | 15 | 8–10 | 32 |
| KRN-12–14 | 24.5 | 53 | 15 | 19 | 12–14 | 69 |
*KRN-2 has been discontinued. The equivalent product is the Light Thimble KR-2.

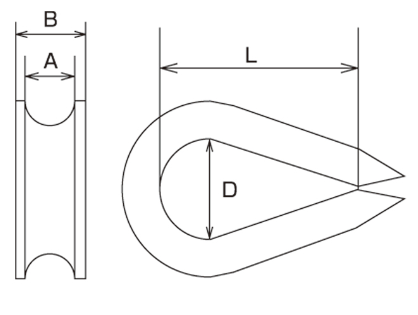

Dimensions (mm)
