Mizumoto Machine Mfg. Co.

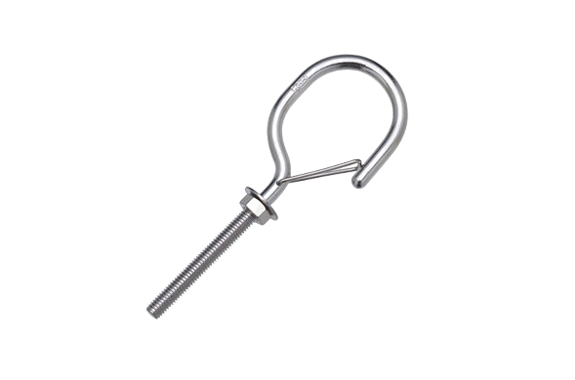

Mizumoto NF Series Net Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: NF Series
Features
- Since it is equipped with a slip stop, it is difficult for hanging items to come off carelessly.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
Specifications
| Product Number | D | L | L1 | B | W | S | R | A | T | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| NF-4 | 4 | 75 | 37 | 38 | 19 | 12 | 5 | 8 | 1 | M-4 | 10 | 5 | 0.05 |
| NF-5 | 4.3 | 91 | 50 | 41 | 24 | 15 | 7.5 | 12 | 1 | M-5 | 18 | 7 | 0.07 |
| NF-6 | 5.2 | 115 | 63 | 52 | 30 | 18 | 9 | 20 | 2 | M-6 | 35 | 12 | 0.12 |
| NF-8 | 7 | 155 | 88 | 67 | 40 | 25 | 12.5 | 22 | 2 | M-8 | 77 | 20 | 0.20 |
*Comes with 1 washer each with a hexagonal nut and screw

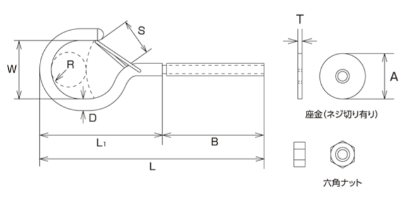

Dimensions (mm)
