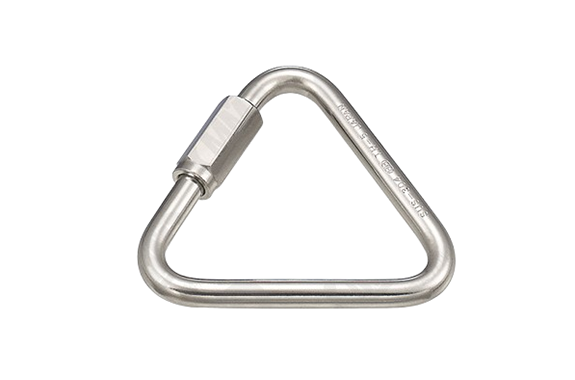

Mizumoto TH Series Triangular Ring Catch
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TH Series
Features
- It can be easily opened and closed by simply turning the nut.
- It is suitable for connecting belts and chains.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Part No. | D | S | L | W1 | W2 | E | Weight (g) | Reference Working Load (kgf) | (kN) |
| TH-3 | 3 | 5.5 | 31 | 33.5 | 22 | 3.3 | 6 | 20 | 0.2 |
| TH-4 | 4 | 6.5 | 38 | 41.5 | 27 | 4.2 | 12 | 35 | 0.34 |
| TH-5 | 5 | 8.5 | 49 | 53 | 37 | 5.4 | 25 | 60 | 0.59 |
| TH-6 | 6 | 9.5 | 58 | 63.5 | 42 | 6.5 | 42 | 100 | 0.98 |
| TH-8 | 8 | 11 | 79 | 85 | 53 | 8.5 | 101 | 250 | 2.45 |

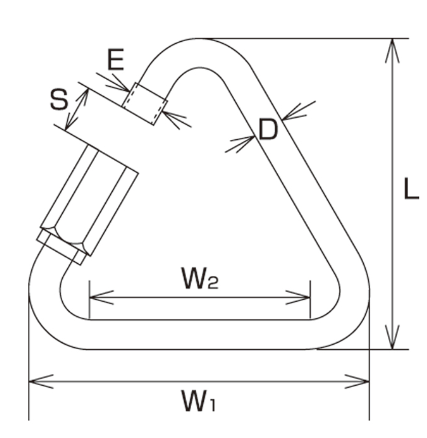

Dimensions (mm)
