Mizumoto Machine Mfg. Co.

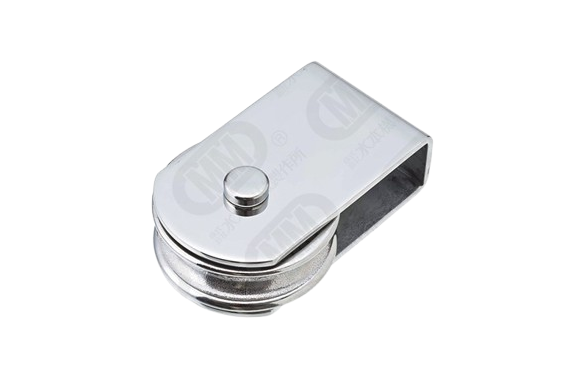

Mizumoto HN Series Sanma Block (for Welding)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: HN Series
Features
- It is for welding. Pass the rope through it to lift and pull luggage.
Specifications
For Welding
| Model | Wheel Diameter | Number of Wheels | Wheel Groove Width | L | W | H | D | Applicable Rope Diameter | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| HN-50 | 50 | 1 | 14 | 77 | 45 | 30 | φ10 | ~φ12 | 393 | 300 | 2.94 |
| HN-75 | 75 | 1 | 15 | 116 | 65 | 34 | φ16 | ~φ14 | 855 | 550 | 5.39 |

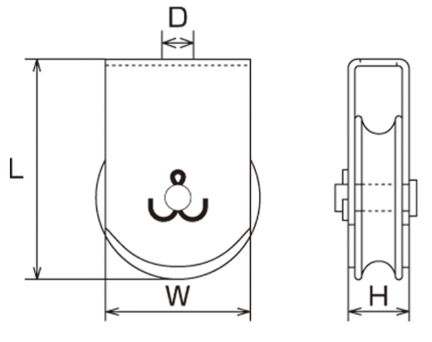

Dimensions (mm)
