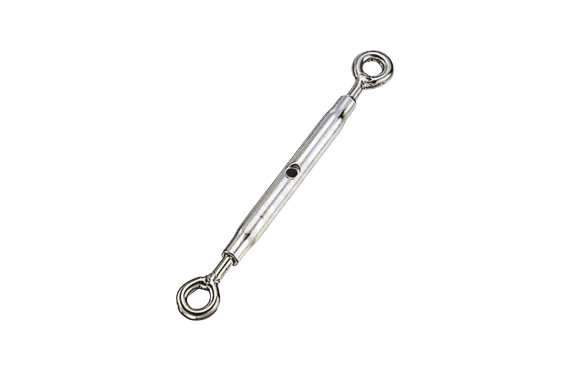

Mizumoto TBP-E Series Pipe Turnbuckle (Eye & Eye)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TBP-E Series
Features
- The frame can be rotated to loosen or tighten.
- Unlike the frame type, it is a pipe type and the screw part is not exposed, so it is more decorative.
- To adjust the tension of the wire rope.
Specifications
| Model | L | W | J | D | d | A | B | L1 | L2 | Thread Size | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| NEW TBP-4EM | 80 | 8 | 3 | 3.5 | 10 | 40 | 65 | 130 | 195 | M-4 | 24 | 90 | 0.88 |
| TBP-5E | 80 | 11 | 4 | 4 | 8 | 33 | 50 | 132 | 165 | W-3/16 | 37 | 130 | 1.27 |
| TBP-6E | 100 | 13 | 5 | 5 | 10 | 45 | 74 | 160 | 220 | W-1/4 | 71 | 200 | 1.96 |
| TBP-8E | 129 | 14 | 6 | 7 | 14 | 60 | 95 | 199 | 295 | W-5/16 | 143 | 300 | 2.94 |
| TBP-9E | 157 | 17 | 8 | 8.3 | 16 | 75 | 122 | 251 | 370 | W-3/8 | 240 | 450 | 4.41 |
| TBP-12E | 200 | 22 | 10 | 11 | 21 | 100 | 155 | 310 | 470 | W-1/2 | 527 | 700 | 6.86 |
| TBP-16E | 250 | 27 | 10 | 14.5 | 25 | 120 | 183 | 380 | 540 | W-5/8 | 960 | 900 | 8.82 |
Dimensions (mm)
