Mizumoto Machine Mfg. Co.

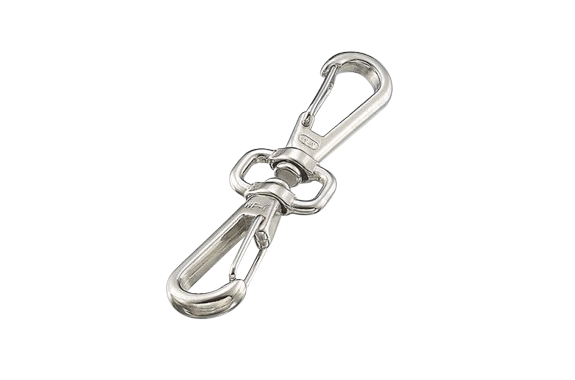

Mizumoto WF Series Swivel Double Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: WF Series
Features
- There are hooks at both ends.
- The center part rotates to remove twisting.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product No. | D | L | L2 | W1 | W2 | S | R | H | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WF-1 | 4 | 112 | 53.5 | 21 | 21.5 | 9 | 3 | 5 | 7 | 53 | 20 | 0.2 |

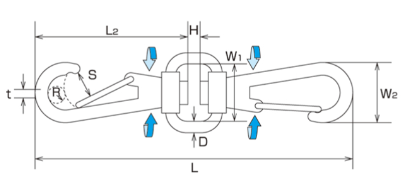

Dimensions (mm)
