Mizumoto Machine Mfg. Co.

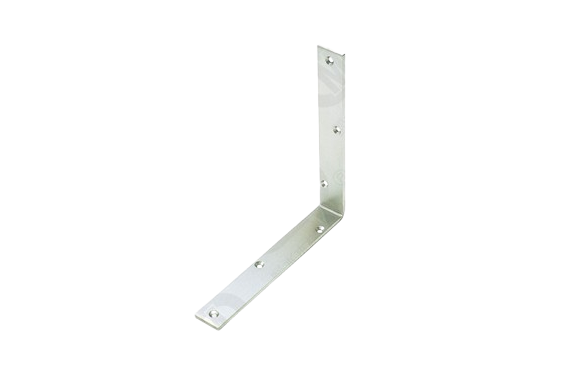

Mizumoto KLM Series Gold Fold
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KLM Series
Features
- The sitting seat is attached to both sides.
- It can be used both inward and outward.
- Please use the screw on the countersunk head. For reinforcing corners.
Specifications
| Item Number | TYPE | L (Length) | W (Width) | T | d | A | B | C | D | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| KLM-30120 | ① | 120 | – | 5 | 5 | 29.5 | 80 | – | – | 247 |
| KLM-30150 | ② | 150 | – | 5 | 5 | 29.5 | 55 | 55 | 6.5 | 309 |
| KLM-30200 | ② | 200 | 30 | 5 | 5 | 35.5 | 76 | 77 | 6.5 | 416 |
| KLM-30250 | ② | 250 | – | 5 | 5 | 35.5 | 101 | 101 | 6.5 | 526 |
| KLM-30300 | ② | 300 | – | 5 | 5 | 35.5 | 126 | 125 | 6.5 | 636 |
*With double-sided sitting (can be used both inward and outward.)
*Hairline finish

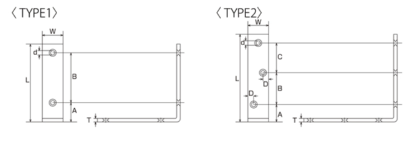

Dimensions (mm)
