Mizumoto Machine Mfg. Co.

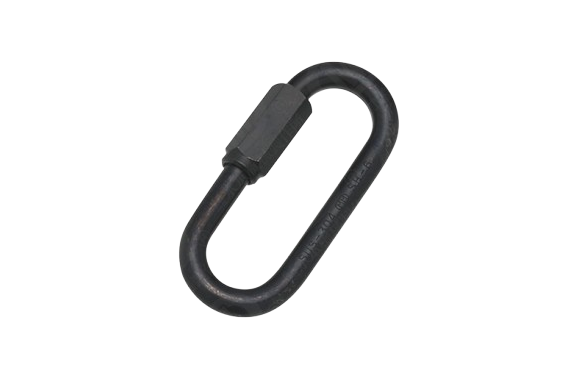

Mizumoto SH-MB Series Ring Catch Black Paint
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SH-MB Series
Features
- It is painted black, so it is not reflective and is not easily noticeable.
- It can be easily opened and closed by simply turning the nut.
- For stage, lighting, decoration, and optical equipment.
- Attached to terminals such as chains, as joint fittings.
- Type: Double thread type Surface finish: Black paint (matte black)
Specifications
| Product Number | D | S | L | B1 | B2 | E | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SH-5MB | 5 | 8.5 | 42 | 13 | 11.5 | 5.4 | 20 | 80 | 0.78 |
| SH-6MB | 6 | 9.5 | 49 | 15 | 13.5 | 6.5 | 32 | 150 | 1.47 |
| SH-8MB | 8 | 10.5 | 62 | 17 | 15 | 8.5 | 72 | 350 | 3.43 |
*Both screw type
*SH-2.5 (316) has been discontinued.
*The surface finish may vary slightly depending on the lot.
*The color may fade depending on the environment. Do not use outdoors.
*The paint may peel off due to impact.

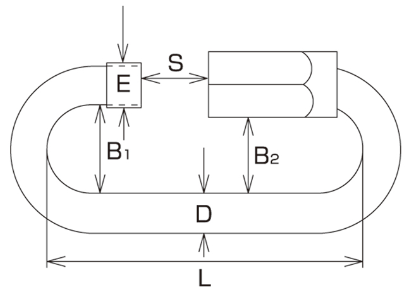

Dimensions (mm)
