Mizumoto Machine Mfg. Co.

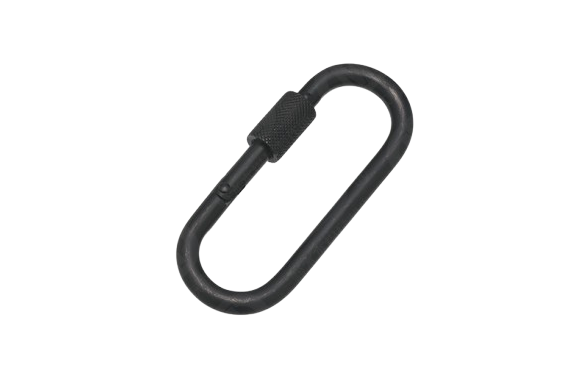

Mizumoto P-B-MB Series Petit Carabiner with Ring Black Paint
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: P-B-MB Series
Features
- It is painted black, so it is not reflective and is not noticeable.
- The hook does not open inadvertently, making it more secure.
- It is used as a connecting bracket such as chains, wires, ropes, etc. for stages, lighting, decorations, and optical equipment, and as a joint for terminal fittings.
- Surface finish: Black paint (matte black)
Specifications
| Product Number | D | L | W | S | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| P-4BMB | 4 | 38 | 13 | 6 | 11 | 23 | 0.23 |
| P-5BMB | 5 | 57 | 16.5 | 8 | 24 | 70 | 0.69 |
| P-6BMB | 6 | 65 | 19 | 9 | 42 | 90 | 0.88 |
| P-8BMB | 8 | 74 | 22.5 | 10 | 80 | 140 | 1.37 |
*It cannot be used as a safety belt.
*The surface finish may vary slightly depending on the lot.
*The color may fade depending on the environment. Do not use outdoors.
*The paint may peel off due to impact.

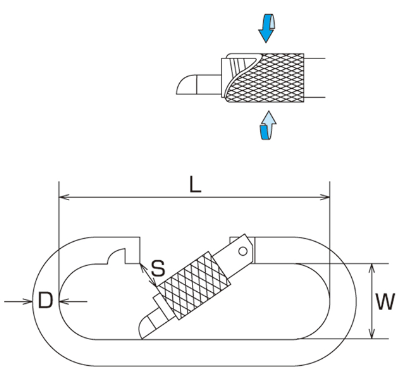

Dimensions (mm)
