Mizumoto Machine Mfg. Co.

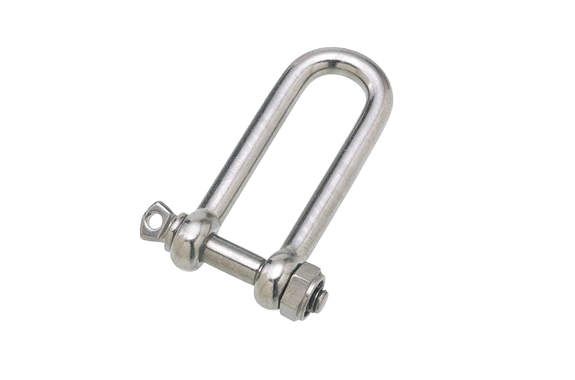

Mizumoto SPLU Series Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SPLU Series
Features
- It uses a non-loosening nut. It is not easy to loosen and has a clean appearance that is easy to install.
- The L dimension is twice as long as a conventional shackle.
- It is used as a terminal hardware for chains, wires, and ropes.
- There is also a thread cut on the main body (frame) with a loosening nut
Specifications
| Product Number | D | L | B | d | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SPLU-5 | 5 | 40 | 10 | 10 | M-5 | 24 | 100 | 0.98 |
| SPLU-6 | 6 | 48 | 12 | 12 | M-6 | 38 | 185 | 1.81 |
| SPLU-8 | 8 | 64 | 16 | 16 | W-5/16 | 93 | 275 | 2.70 |
| SPLU-10 | 10 | 80 | 20 | 20 | W-3/8 | 173 | 420 | 4.12 |
| SPLU-12 | 12 | 96 | 24 | 24 | W-1/2 | 300 | 505 | 4.95 |

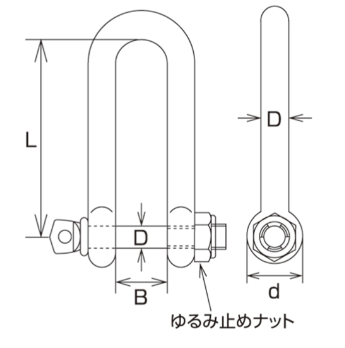

Dimensions (mm)
