Mizumoto Machine Mfg. Co.

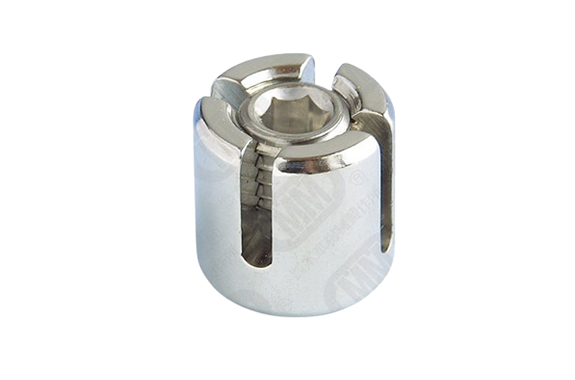

Mizumoto WCP Series Double Clip
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: WCP Series
Features
- Stainless steel wire is used for fixing at the intersection stretched in a grid shape.
- Set screws with hexagonal holes (holosets) to secure the wires.
Specifications
| Part No. | D | L | A | Thread Size | Wrench Size | Applicable Wire Diameter | Weight (g) |
| WCP-2 | 20 | 18 | 2.3 | M-12 | 6 | 2 | 34 |
| WCP-3 | 20 | 19 | 3.3 | M-12 | 6 | 3 | 34 |
| WCP-4 | 20 | 21 | 4.3 | M-12 | 6 | 4 | 34 |
| WCP-5 | 20 | 23 | 5.3 | M-12 | 6 | 5 | 34 |
| WCP-6 | 20 | 25 | 6.3 | M-12 | 6 | 6 | 34 |

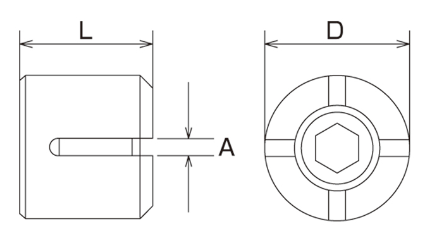

Dimensions (mm)
