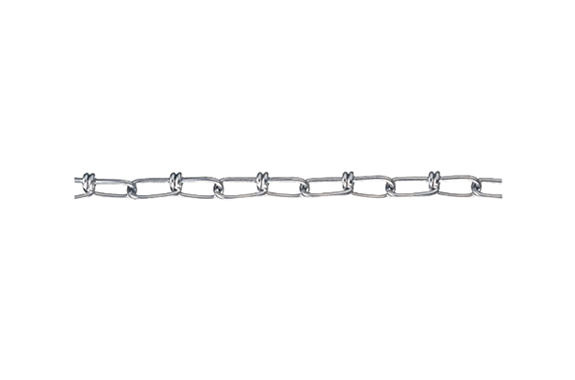

Mizumoto T-B Series Stainless Steel Twist Link Chain
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: T-B Series
Features
- It is used very widely due to its excellent corrosion and oxidation resistance.
- The twisted shape prevents your fingers from entering the gaps in the chain.
Specifications
| Part No. | Wire Dia. d (mm) | Inner Length P (mm) | Inner Width W (mm) | Weight per meter (kg/m) (Calculated) | Working Load (Reference) | Breaking Load (Reference) | ||
| (kgf) | (kN) | (kgf) | (kN) | |||||
| 3T-B | 3 | 22 | 5 | 0.16 | 100 | 0.98 | 200 | 1.96 |
| 4T-B | 4 | 24 | 6 | 0.29 | 170 | 1.67 | 340 | 3.33 |
| 5T-B | 5 | 25 | 7 | 0.47 | 250 | 2.45 | 500 | 4.9 |
| 6T-B | 6 | 28 | 9 | 0.69 | 350 | 3.43 | 700 | 6.86 |
| 7T-B | 7 | 34 | 10 | 0.9 | 450 | 4.41 | 900 | 8.82 |
| 8T-B | 8 | 35 | 11 | 1.26 | 600 | 5.88 | 1200 | 11.76 |
| 9T-B | 9 | 36 | 13 | 1.67 | 800 | 7.84 | 1600 | 15.68 |
*Material: Both stainless steel SUS304 and SUS316 are in stock.
(The standard product is SUS304, so please specify if you would like SUS316.)
*In addition to the above materials, twisted link chains made of strong aluminum, aluminum color, copper, and brass can also be manufactured.
*The fixed size is 30m per piece.
*Please inquire about sizes other than those listed above.

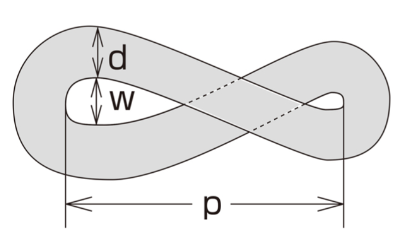

Dimensions (mm)
