Mizumoto Machine Mfg. Co.

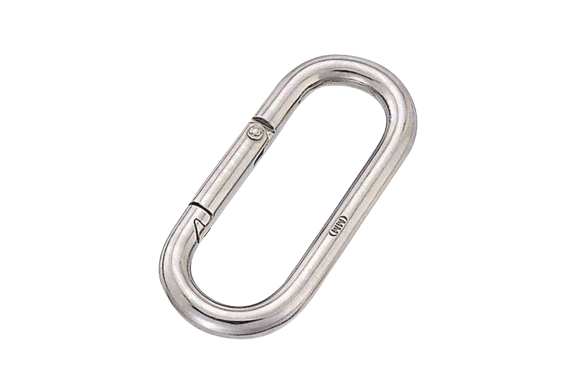

Mizumoto P Series Petit Carabiner
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: P Series
Features
- You can attach and remove the terminal hardware of the chain with one touch.
- It is the most standard joint fitting.
Specifications
| Item | D (in) | L (in) | W (in) | S (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|
| P-3 | 3 | 25 | 10 | 5 | 4 | 8 | 0.08 |
| P-4 | 4 | 38 | 13 | 7 | 9 | 20 | 0.2 |
| P-5 | 5 | 58 | 16 | 9 | 22 | 60 | 0.59 |
| P-6 | 6 | 66 | 19 | 11 | 37 | 80 | 0.78 |
| P-8 | 8 | 74 | 20 | 10 | 74 | 120 | 1.18 |
| P-10 | 10 | 88 | 28 | 14 | 142 | 150 | 1.47 |

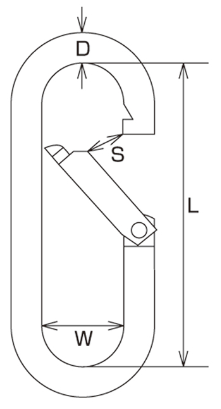

Dimensions (mm)
