Mizumoto Machine Mfg. Co.

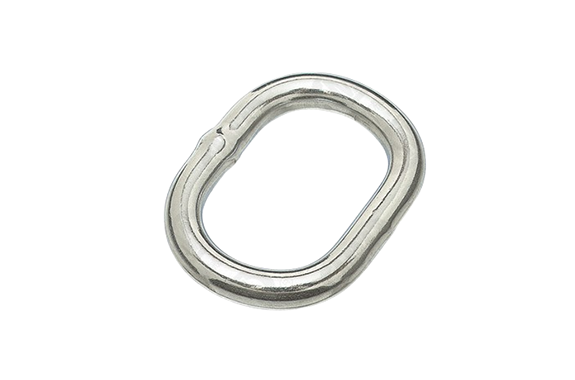

Mizumoto RO Series Elliptic Link
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RO Series
Features
- Compared to round links of the same wire diameter, the working load is increased by about twice.
- The connection is welded, so it is strong.
- As a connecting bracket or hanging bracket such as a chain or rope.
Specifications
| Part No. | D (mm) | P (mm) | W (mm) | Weight (g) | Reference Working Load | Price (JPY / pc) | Packing Unit | ||
| (kgf) | (kN) | Incl. Tax | Excl. Tax | ||||||
| RO-3 | 3 | 19 | 6 | 3 | 70 | 0.69 | 264 | 240 | 20 |
| RO-4 | 4 | 26 | 12 | 8 | 90 | 0.88 | 308 | 280 | 20 |
| RO-5 | 5 | 28 | 16 | 14 | 150 | 1.47 | 495 | 450 | 20 |
| RO-6 | 6 | 31 | 18 | 23 | 250 | 2.45 | 550 | 500 | 20 |
| RO-8 | 8 | 50 | 30 | 62 | 350 | 3.43 | 880 | 800 | 20 |
| RO-9 | 9 | 50 | 32 | 81 | 500 | 4.90 | 1,320 | 1,200 | 10 |
| RO-10 | 10 | 60 | 40 | 122 | 600 | 5.88 | 1,650 | 1,500 | 10 |
| RO-11 | 11 | 70 | 45 | 167 | 650 | 6.37 | 2,420 | 2,200 | 10 |
| RO-12 | 12 | 80 | 50 | 223 | 750 | 7.35 | 3,520 | 3,200 | 10 |
| RO-13 | 13 | 85 | 60 | 283 | 850 | 8.33 | 4,510 | 4,100 | 10 |
| RO-16 | 16 | 100 | 60 | 490 | 1350 | 13.23 | 8,360 | 7,600 | 5 |
| RO-19 | 19 | 100 | 60 | 722 | 1500 | 14.70 | 14,080 | 12,800 | 5 |
| RO-22 | 22 | 110 | 66 | 1048 | 2000 | 19.60 | 24,310 | 22,100 | 5 |

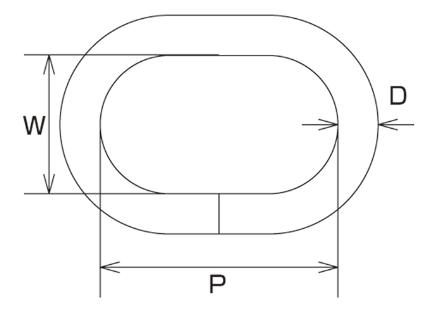

Dimensions (mm)
