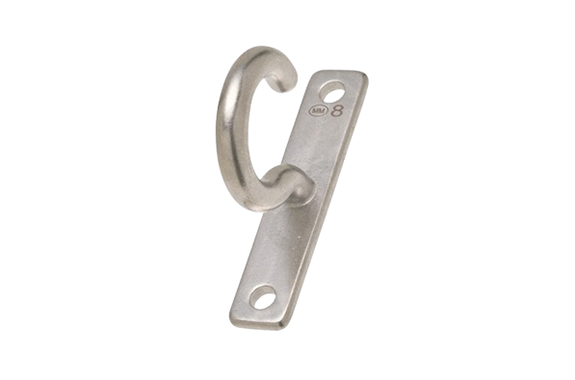

Mizumoto PH-T Series Plate Hook (Twist)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PH-T Series
Features
- It can be mounted on surfaces with a narrow installation width.
- Since it is a counterboring type, please use a screw such as a nave head.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
Specifications
| Model | D | L1 | L2 | W | H | S1 | S2 | d | T | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PH-3T | 3 | 40 | 30 | 7.5 | 20 | 6.5 | 8.5 | 3 | 2 | 5 | 3 | 0.03 |
| PH-4T | 4 | 45 | 35 | 10 | 26 | 8.5 | 11.5 | 4 | 2.5 | 11 | 10 | 0.10 |
| PH-5T | 5 | 55 | 40 | 12 | 32 | 10 | 15 | 5 | 3 | 21 | 15 | 0.15 |
| PH-6T | 6 | 65 | 50 | 14 | 37 | 12 | 17 | 5 | 3 | 31 | 20 | 0.20 |
| PH-8T | 8 | 75 | 60 | 16 | 49 | 15 | 23.5 | 6 | 3 | 64 | 30 | 0.29 |
| PH-10T | 10 | 85 | 70 | 18 | 58 | 19 | 29.8 | 8 | 4 | 101 | 50 | 0.49 |

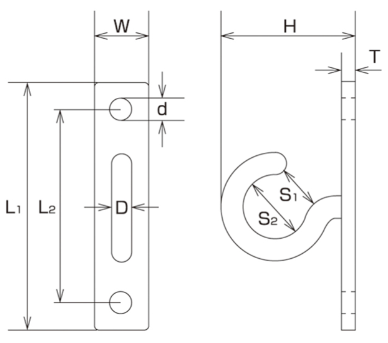

Dimensions (mm)
