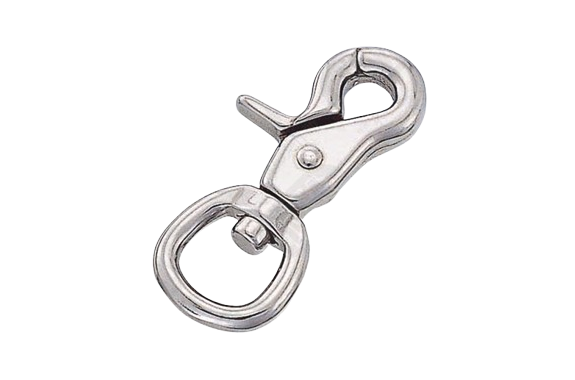

Mizumoto T Series Trigger Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: T Series
Features
- The eye part rotates, so it becomes a chain attachment. You can easily open and close it with a spring hook.
- It is a type with a wide mouth opening. It is used to connect chains, wires, ropes, etc., and to joints of terminal fittings.
- For terminal hardware for chains and ropes for mooring pets.
Specifications
| Product No. | D | L | W1 | W2 | S | H | d | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| T-0 | 2.5 | 48 | 17 | 7.5 | 10 | 7 | 11 | 20 | 40 | 0.39 |
| T-1 | 4.5 | 60 | 21 | 9.5 | 12 | 9 | 13 | 42 | 50 | 0.49 |
| T-2 | 5.5 | 78 | 26 | 10.5 | 17 | 14 | 20 | 73 | 80 | 0.78 |

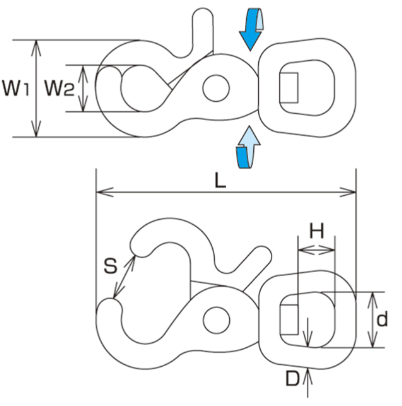

Dimensions (mm)
