Mizumoto Machine Mfg. Co.

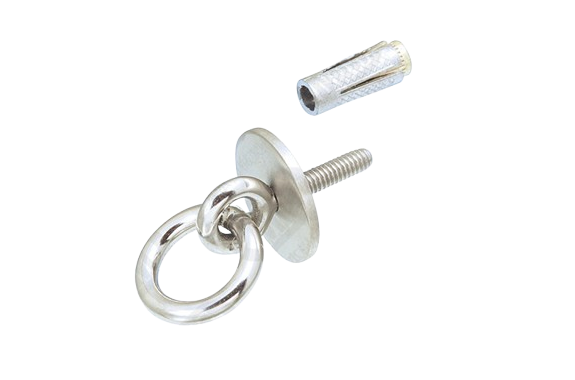

Mizumoto BSR Series Round Cambolt S Type
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: BSR Series
Features
- It comes with a washer and anchor plug.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
- Each comes with a cosmetic washer.
Specifications
| Part No. | D (mm) | L (mm) | H (mm) | A (mm) | Drill Size | Weight (g) | Reference Working Load | Price (JPY / pc) | Packing Unit | ||
| (kgf) | (kN) | Incl. Tax | Excl. Tax | ||||||||
| BSR-6M | 6 | 22 | 28 | 36 | M-6 | 11 | 68 | 0.49 | 2,805 | 2,550 | 20 |
| BSR-9M | 9 | 30 | 49 | 50 | M-10 | 18 | 200 | 1.47 | 7,216 | 6,560 | 20 |
| Part No. | D (mm) | L (mm) | H (mm) | A (mm) | Drill Size | Weight (g) | Reference Working Load | Price (JPY / pc) | Packing Unit | ||
| (kgf) | (kN) | Incl. Tax | Excl. Tax | ||||||||
| BSR-6W | 6 | 22 | 28 | 36 | W-1/4 | 11 | 68 | 0.49 | 2,805 | 2,550 | 20 |
| BSR-9W | 9 | 40 | 50 | 54 | W-3/8 | 18 | 166 | 1.47 | 7,216 | 6,560 | 10 |

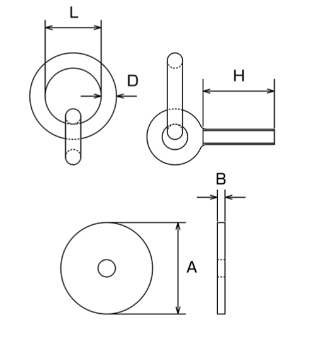

Dimensions (mm)
