Mizumoto Machine Mfg. Co.

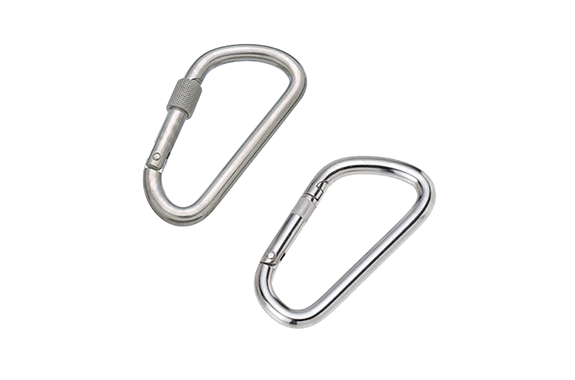

Mizumoto KD Series Carabiner Type D
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KD Series
Features
- When loaded, the load is applied to the long side, so the hook is less stressed.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Item | Type | D (in) | L (in) | W (in) | S (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|---|
| KD-10A | Without Attachment | 10 | 113 | 60 | 22 | 156 | 200 | 1.96 |
| KD-10B | With Attachment | 10 | 113 | 60 | 18 | 161 | 235 | 2.30 |
*It cannot be used as a safety belt.

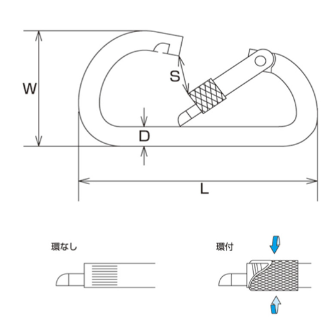

Dimensions (mm)
