Mizumoto Machine Mfg. Co.

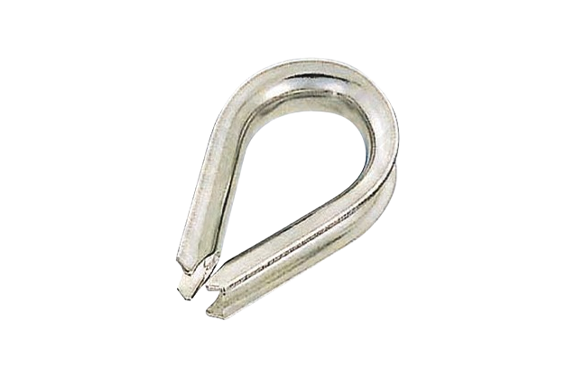

Mizumoto KR Series Light Thimble
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KR Series
Features
- It is used as a wire course for terminal processing. When using the wire rope tip with eye processing, it prevents wire wear.
Specifications
| Part No. | D | L | A | B | Applicable Rope Diameter | Weight (g) |
| KR-2 | 8 | 17 | 2.5 | 4 | 2 | 1 |
| KR-3 | 9 | 17 | 3.5 | 5 | 3 | 2 |
| KR-4 | 10 | 19 | 4.5 | 6 | 4 | 3 |
| KR-5 | 13 | 21 | 5.5 | 7 | 5 | 4 |
| KR-6 | 15 | 25 | 7 | 9 | 6 | 7 |
| KR-8 | 20 | 35 | 9 | 12 | 8 | 19 |
| KR-10 | 25 | 42 | 12 | 15 | 10 | 27 |

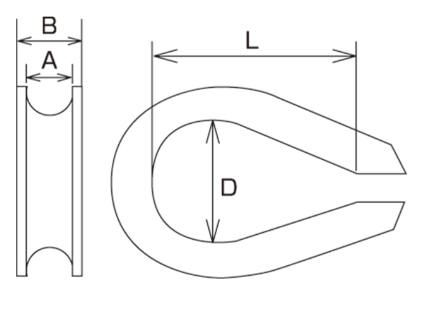

Dimensions (mm)
