Mizumoto Machine Mfg. Co.

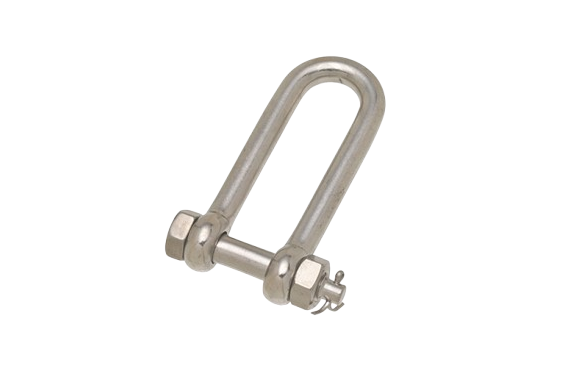

Mizumoto SBML Series Long SBM Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SBML Series
Features
- Compared to SBM shackles, the length is doubled. Since it has a wari pin, it is difficult for the nut to come off.
- For connecting chains, wires, ropes, etc., and for joints of terminal fittings.
- Especially in places where the pins may loosen with a normal shackle due to a lot of vibration. With nut and wari pin
Specifications
| Product Number | D | L | B | d | t | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| NEW SBML-13 | 14 | 104 | 26 | 26 | 13 | M-14 | 400 | 900 | 8.82 |
| NEW SBML-16 | 16 | 128 | 32 | 32 | 16 | M-16 | 710 | 1500 | 14.70 |
| NEW SBML-19 | 20 | 152 | 38 | 38 | 19 | M-20 | 1230 | 2000 | 19.60 |
| NEW SBML-22 | 22 | 176 | 44 | 44 | 22 | M-22 | 1925 | 2500 | 24.50 |
| NEW SBML-25 | 25 | 200 | 50 | 50 | 25 | M-24 | 2740 | 3200 | 31.36 |
Dimensions (mm)
