Mizumoto Machine Mfg. Co.

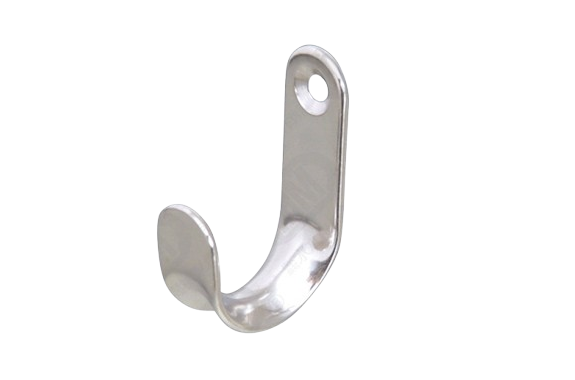

Mizumoto YFA Series Seat Hook Type A
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: YFA Series
Features
- Made of stainless steel, rust-resistant and durable. As a hanger.
Specifications
| Item Number | L (Length) | W (Width) | S (Thickness) | T (Height) | d | Weight (kg) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|
| YFA-1 | 22 | 7 | 9 | 1.5 | 2.1 | 3 | 3 | 0.03 |
| YFA-2 | 25 | 7 | 12 | 1.5 | 2.1 | 3.5 | 3 | 0.03 |
| YFA-3 | 30 | 9 | 15 | 1.5 | 3.1 | 5.5 | 3 | 0.03 |
| YFA-4 (old YF-1) | 35 | 11 | 20 | 1.5 | 3.5 | 7 | 3 | 0.03 |
*Type B (bagged) comes with stainless steel plate wood twister

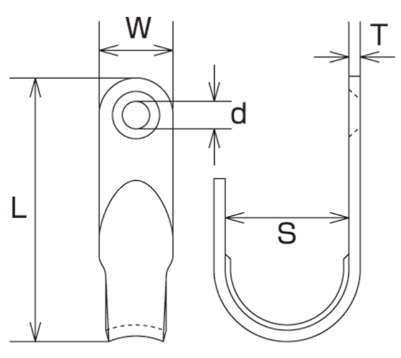

Dimensions (mm)
