Mizumoto Machine Mfg. Co.

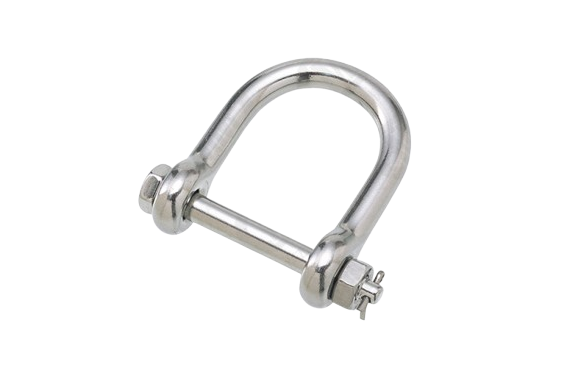

Mizumoto SBW Series Waripin Wide Screw Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SBW Series
Features
- Since it is a wari pin stopper, there is no risk of the pin loosening due to vibration.
- As a connecting fitting such as chain, wire, rope, etc., or as a joint for terminal fittings.
- In particular, with a normal shackle due to a lot of vibration, the pin may loosen.
Specifications
| Product Number | D | L | B | d | t | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SBW-9 | 8 | 50 | 36 | 20 | 9 | M-8 | 119 | 300 | 2.94 |
| SBW-12 | 12 | 61 | 56 | 24 | 12 | M-12 | 295 | 450 | 4.41 |

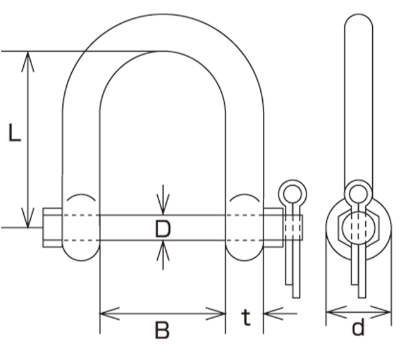

Dimensions (mm)
