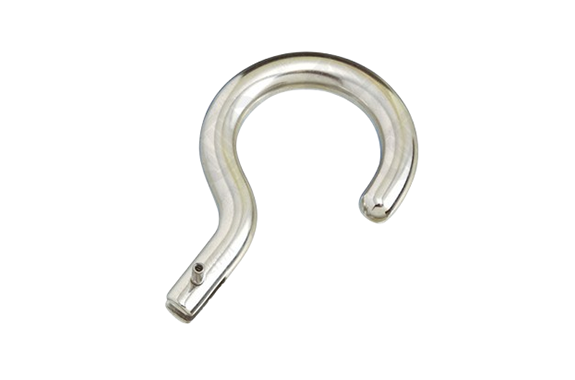

Mizumoto CQH Series Chain Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: CQH Series
Features
- Set the chain and use it by tapping the pin. As a terminal hardware for the chain.
Specifications
| Part No. | D | L | W | S | A | B | d | Applicable Chain Diameter | Weight (g) | Reference Load Capacity | |
| (kgf) | (kN) | ||||||||||
| CQH-2 | 6 | 60 | 32 | 21 | 8.5 | 2.5 | 2 | 2φ | 24 | 30 | 0.29 |
| CQH-2.5 | 8 | 70 | 34 | 23 | 11 | 3 | 2.5 | 2.5φ | 46 | 60 | 0.59 |
| CQH-3 | 10 | 84 | 36 | 25 | 14 | 4 | 3 | 3φ | 84 | 90 | 0.88 |

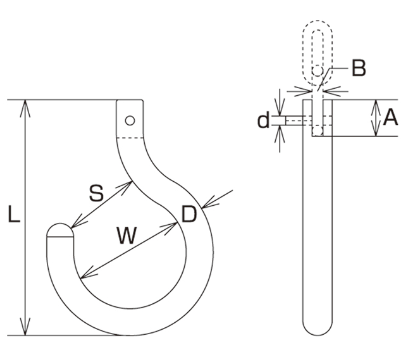

Dimensions (mm)
