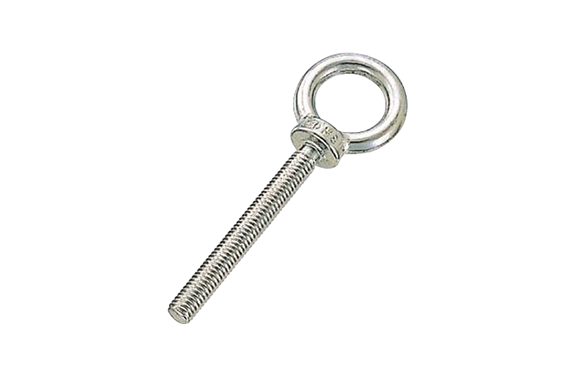

Mizumoto LT Series Long Eye Bolt With Brim (Cast)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LT Series
Features
- The neck is long, so it can be used on thicker areas.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
Specifications
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| LT-4M | 4 | 10 | 20 | 40 | 10 | M-4 | 9 | 20 | 0.20 |
| LT-5M | 5 | 13 | 26 | 50 | 11 | M-5 | 18 | 30 | 0.29 |
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| NEW LT-4M20 | 4 | 10 | 20 | 20 | 10 | M-4 | 8 | 20 | 0.20 |

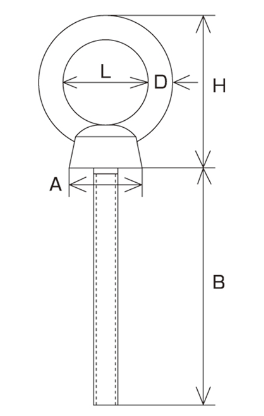

Dimensions (mm)
