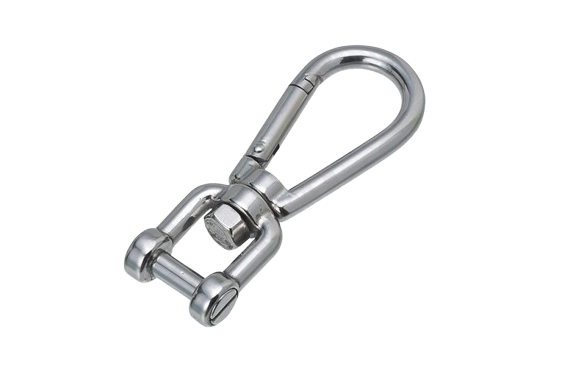

Mizumoto BB Series Snap Hook Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: BB Series
Features
- Standard spring hook combined with shackle.
- The shackle part rotates, so the chain does not get tangled.
- As a connecting fittings such as chains, wires, and ropes, and as joints for terminal fittings. For chains and other things.
Specifications
| Product Number | D1 | D2 | L1 | L2 | W1 | W2 | S | Nominal Diameter | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BB-5 | 5 | 5 | 72 | 11 | 26 | 11 | 7 | M=5 | 34 | 60 | 0.59 |
| BB-6 | 6 | 6 | 84 | 10 | 32 | 15 | 9 | M=6 | 53 | 80 | 0.78 |
| BB-8 | 8 | 8 | 108 | 14 | 41 | 16 | 11 | M=8 | 128 | 120 | 1.18 |

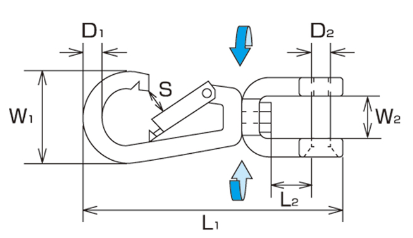

Dimensions (mm)
