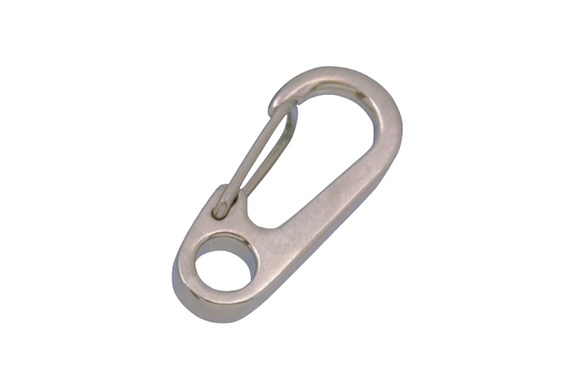

Mizumoto TIMP Series Titanium Mini Clip
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TIMP Series
Features
- It is light, strong, and has good corrosion resistance.
- The hook part and the part where the chain rope is put are separated.
- As an auxiliary tool to prevent the fall off of industrial machinery and tools.
Specifications
Material: Titanium
| Part No. | L | W | S | R | d | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | |||||||
| TMP-1 | 20 | 9.5 | 4 | 3 | 3.5 | 0.8 | 1 | 0.01 |
| TMP-2 | 26 | 12 | 5 | 3 | 3.5 | 2 | 3 | 0.03 |
| TMP-3 | 34 | 15 | 6 | 4 | 4 | 4 | 10 | 0.10 |
| TMP-4 | 45 | 21.7 | 10 | 8 | 6 | 7 | 15 | 0.15 |
*Titanium products will be quoted each time.
*Quantities are limited.

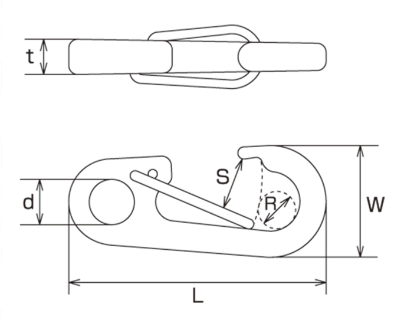

Dimensions (mm)
