Mizumoto Machine Mfg. Co.

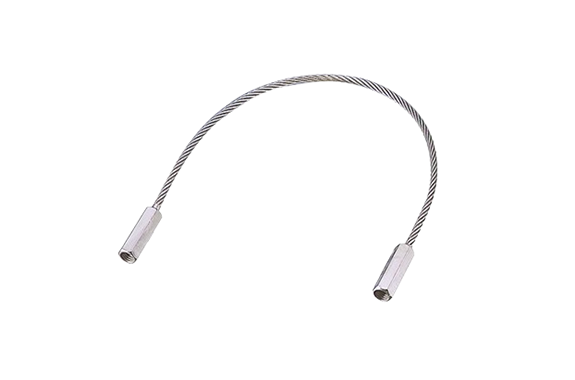

Mizumoto NW Series Wire Nuts
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: NW Series
Features
- By bending it into a U-shape and using it, you can fix pipes and other things on the wall or floor.
- As a fixing fitting, such as a pipe to a wall, floor, or column. As a fixing fitting.
Specifications
| Part No. | D | L | T | A | B | C | Thread Size | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | |||||||||
| NW-2020 | 2 | 200 | 18 | 26 | 8 | 9 | M-6 | 17.5 | 40 | 0.39 |
| NW-3030 | 3 | 300 | 22 | 32 | 8 | 9 | M-6 | 26 | 50 | 0.49 |
| NW-4040 | 4 | 400 | 25 | 34 | 10 | 11.3 | M-8 | 47.5 | 80 | 0.78 |

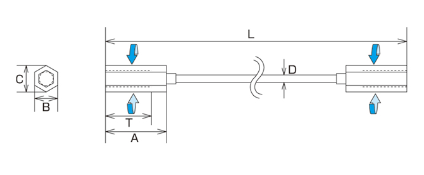

Dimensions (mm)
